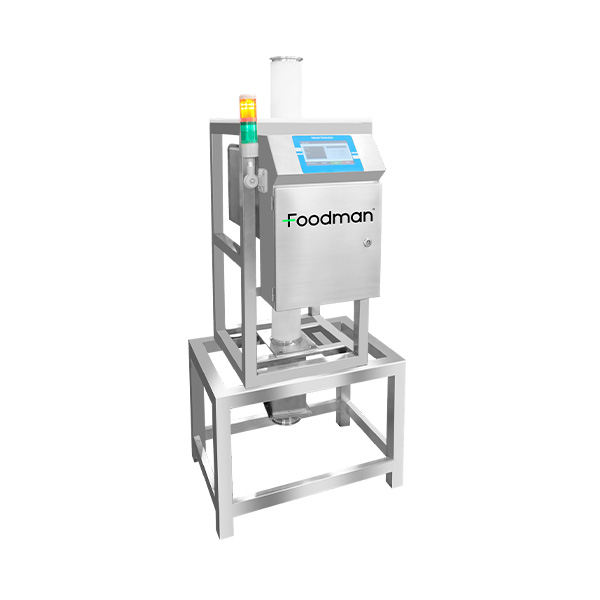

We have 5 models for free fall metal detector: FMD-P-80, FMD-P-100, FMD-P-125, FMD-P-150, FMD-P-200. The corresponding inner pipe diameter of each model: 80mm, 100mm, 125mm, 150mm, 200mm. The corresponding maximum flow rate of each model: 3t/h, 5t/h, 7t/h, 10t/h, 20t/h. Shipping Details Shipping by Sea Freight(FOB, CIF)/Air &Express(FOB, DDU, DDP)/Rail Freight Product Details Suitable for detecting foreign metal objects in bulk products such as powders and granules, widely applied to cereals, flour, rice and various bulk foods. 1. Equipped with 7-inch touch screen for simple operation, supporting 100 groups of product preset parameters. 2. Three-level metal detection sensitivity (FE, NFE, SUS304 stainless steel) available for different models to meet diverse inspection demands. 3. Comes with audible and visual alarm when metal contaminants are detected, multiple rejector types optional for automatic removal of defective materials. 4. Pipeline made of PP material, main body adopts SUS304 stainless steel, IP54 protection grade, durable and food-safe. 5. Stable power supply: AC220V±10% 50Hz (60Hz compatible); wide operating environment: temperature 0℃~40℃, humidity 30%~95%. Specifications

Model	FMD-P-80	FMD-P-100	FMD-P-125	FMD-P-150	FMD-P-200
Inner Pipe (mm)	80	100	125	150	200
Sensitivity-FE (W/O Product, mm)	0.5	0.6	0.7	0.7	0.8
Sensitivity-NFE (W/O Product, mm)	0.8	1.0	1.2	1.2	1.5
Sensitivity-SUS304 (W/O Product, mm)	1.0	1.2	1.5	1.5	2.0
Flow Rate (t/h)	3	5	7	10	20
Operation	7 Inch Touch Screen
Product Preset	100 groups
Power Supply	AC220V±10% 50Hz (60Hz)
Alarm	Audible and visual alarm
Rejector	Multi Rejector Selectable
Pipeline Materials	PP
IP Rate	IP54
Operating Environment	Temperature: 0℃ ~ 40℃, Humidity: 30% ~ 95%
Main Body Material	SUS304 Stainless Steel
