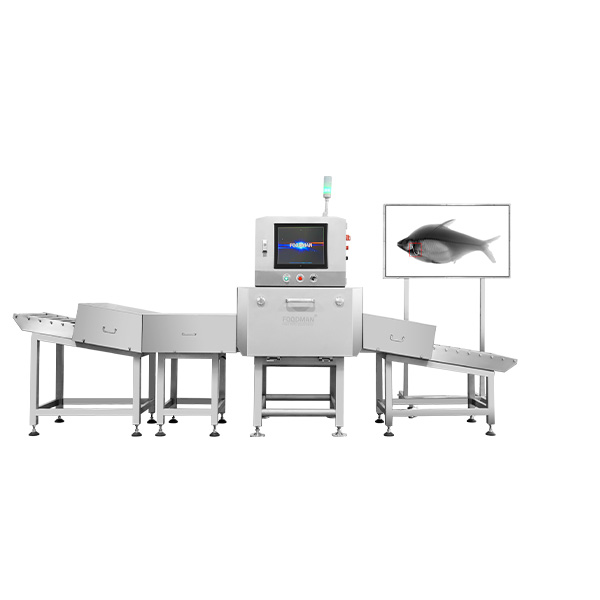

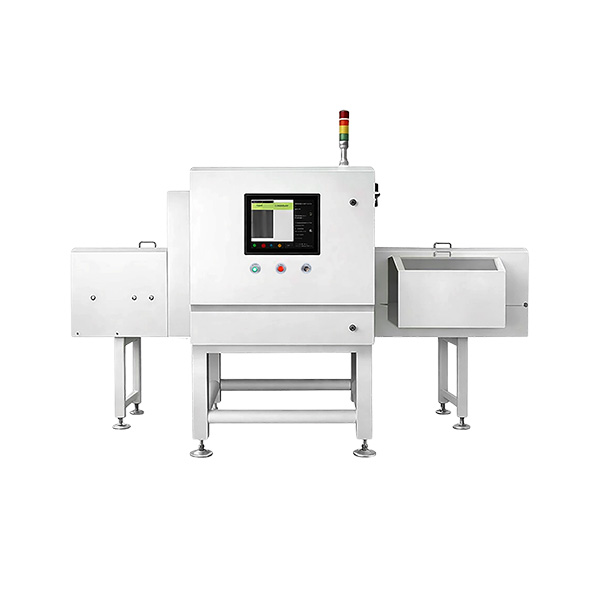

We have 2 models for fish bone X-Ray inspection system: FXR-YC4017, FXR-YC6017. The corresponding aperture size of each model: ● FXR-YC4017: Width 400mm, Height 170mm ● FXR-YC6017: Width 600mm, Height 170mm Shipping Details Shipping by Sea Freight(FOB, CIF)/Air &Express(FOB, DDU, DDP)/Rail Freight Product Details This X-Ray inspection system is specially developed for fish processing production lines. It can detect foreign contaminants and residual tiny fish bones inside fish meat. Equipped with an external high-definition display screen, it facilitates real-time manual observation and secondary inspection, mainly applied to all kinds of fish fillets. 1. Adopts high-precision (HD)0.1mm TDI X-Ray detector and multi-power X-Ray generator (40-120KV, 350W/480W), achieving ultra-high detection sensitivity: Φ0.51mm fish bone, Φ0.1mm stainless steel ball, Φ0.12mm stainless steel wire, Φ0.8mm ceramic and Φ0.8mm glass without product interference. 2. Conveyor belt speed adjustable from 5-40m/min to fit different fish processing line throughput. 3. Operated via 17-inch colored touch screen with Windows System, matched with an external 50-inch HD display for clear real-time image viewing by operators. 4. Built-in LAN Port and USB Port for inspection data storage, export and batch traceability. 5. Multiple reject modes optional: sound alarm, automatic machine stop and rejector to separate fish products with residual bones or foreign impurities. 6. Ultra-low X-Ray leakage less than 1μSv/h, meeting global food radiation safety standards; graded protection rating: IP66 for inspection tunnel, IP54 for other machine parts. 7. Wide working environment: temperature -10℃ ~ 40℃, humidity 30% ~ 90%; power supply AC220V±10% 50/60Hz with max power 1.5KVA; whole machine main body made of SUS304 stainless steel, easy to clean and food hygienic. Specifications

Model	FXR-YC4017	FXR-YC6017
X-Ray Generator	40-120KV, 350W/480W
X-Ray Detector	(HD)0.1mm TDI
Aperture Size(width)	400mm	600mm
Aperture Size(Height)	170mm	170mm
Conveyor Belt Speed	5-40m/min
Sensitivity-Fish Bone (W/O Product, mm)	Φ0.5*1mm
Sensitivity-Stainless Steel Ball (W/O Product, mm)	Φ0.1mm
Sensitivity-Stainless Steel Wire (W/O Product, mm)	Φ0.1*2mm
Sensitivity-Ceramic (W/O Product, mm)	Φ0.8mm
Sensitivity-Glass (W/O Product, mm)	Φ0.8mm
Operation	17-inch colored touch screen, Windows System
X-Ray Leakage	<1μSv/(h)
Display Mode	External 50-inch HD display
Support data interface	LAN Port, USB Port
Power Supply	AC220V±10% 50Hz(60Hz), 1.5KVA Max
Rejector	Sound and Alarm/ stopping machine/ rejector
IP Rate	IP66 for tunnel, IP54 for rest part
Operating Environment	Temperature: -10℃ ~ 40℃, Humidity: 30% ~ 90%
Main Body Material	SUS304 Stainless Steel
