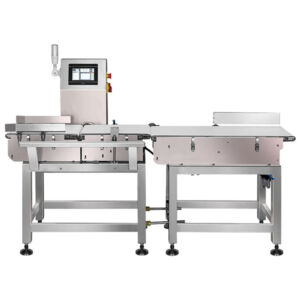

    Heavyweight Checkweigher

    Categories:

    Contact Now
    Product Details Suitable for inspecting the weight of large size packages, especially suitable for detecting the missing items for the whole packaged product, like the lack of bottles, boxes, pieces, bags, cans, etc. 1. Weighing data can be saved to a USB flash disk. All the data can be exported in Excel format and stored up to one year. 2. High rigid load cell guarantees the high speed and high accuracy weighing. 3. The conveyor belt is fully compliant and meets food hygiene law. 4. Easily connect with another device such as printer, labeling machine etc. 5. Wind shield available for the weighing part. (Whole machine optional). Specifications
    Brand: Foodman Model: YCW-40, YCW-500,YCW-600 Checking Range: YCW-40, ≤20kg; YCW-500, ≤30kg; YCW-600, ≤40kg
    Accuracy: YCW-40, ±2g ~ ±10g; YCW-500, ±5g ~ ±30g; YCW-600, ±5g ~ ±30g Minimum Scale: YCW-40,1g; YCW-500,5g; YCW-600, 5g Belt Speed: YCW-40, 20~60m/min; YCW-500, 15~35m/min; YCW-600,​​15~35m/min
    Suggested Product Dimension: YCW-40, ≤450mm(L) * 390mm (W); YCW-500, ≤650mm(L) * 490mm (W); YCW-600,​​ ≤650mm(L) * 590mm (W) Weighing Belt Dimension: YCW-40, 620mm(L) * 400mm (W); YCW-500, 1066mm(L) * 490mm (W); YCW-600, 1200mm(L) * 590mm (W) Power Supply: AC220V±10% 50Hz(60Hz)
    Machine Body Construction: SUS304 Full Stainless Steel Rejector: Swing Arm / Pusher / Drop / Portal Frame Control Module: High Speed A/D Sampling Module
    Product Preset: 99 Temperature: 0℃~40℃ Humidity: 30%~95%
