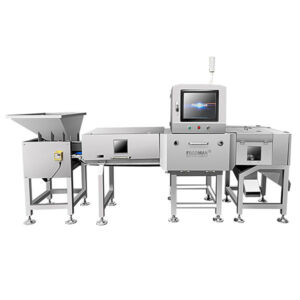

Product Details
It is used for detecting contaminants inside the products. Metal and non-metal, such as stainless steel, glass, ceramic, stone, bones, hard rubber and hard plastic, etc.
1. Auto-analysis on the inspected product, Auto-save inspection photos.
2. Safe and reliable: X-Ray leakage is minor than 1μ Sv/hour, complying with FDA and CE standards. Radiation less than 1 Gy.
3. Designed a complete shielded structure.
4. Intuitive operation interface: 17 inches full-color touch screen, easy to use.
5. Easy cleaning and maintenance: Detachable structure makes cleaning easy. Waterproof washdown construction.
Specifications
| Brand: Foodman | Model: FXR-15K120-2 | X-Ray Tube: 480W 120kV |
| Window of Inspection Conveyor: 180mm W x 250mm H | Stainless steel ball: φ0.4mm | Stainless steel wire: φ0.2 *2mm (L) |
| Ceramic ball: φ1.0mm | Glass ball: φ1.0mm | Conveyor Speed: 10-70m/min |
| Display: 17 inches full color touch screen | Data interface: LAN Port, USB Port | Working Temperature: -10℃-40℃(with on-board air conditioner) |
| Humidity: 30%-90% (Equipped with dehumidifier) | X-Ray Emission: ＜1μSv per hour | Protection: Protective tunnel |
| Reaction to defectives: Pusher | Air Pressure: 0.6-0.8MPa | Power: AC220V ±10% 50/60Hz, 1.5kw Max. (Adjustable) |
| Waterproof: IP66 for detecting tunnel, IP54 for rest of body | Body Construction: Stainless steel 304 |
