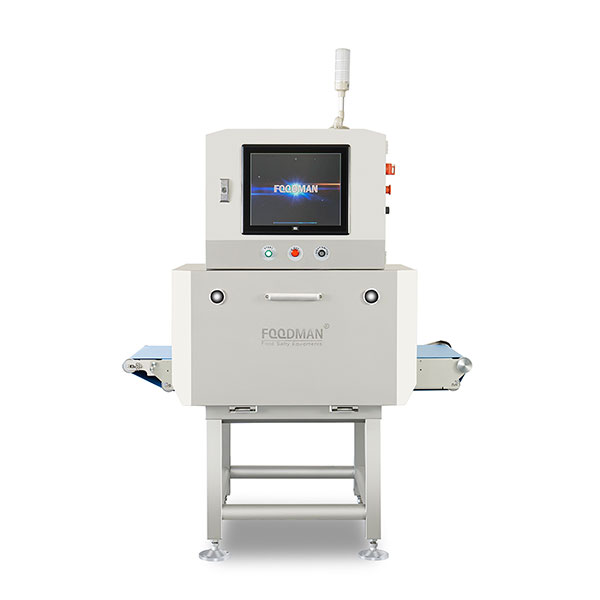

Product Details Food X-ray inspection system use penetration to select contaminants like bones, plastics and other hard metals in high accuracy and high stability to improve the quality of finished products. 1. Auto-analysis, autosave pictures of inspection 2. Safe and reliable: X-Ray leakage is minor than 1μ Sv/hour, complying with FDA and CE standards. Radiation less than 1 Gy. Designed a complete shielded structure. 3. Comprehensive software support, Ensuring the best sensitivity with better shielding function. 4. Intuitive operation interface: 17 inches full-color touch screen, easy to use. 5. Easy cleaning and maintenance: Detachable structure makes cleaning easy. Waterproof construction. Specifications

Brand: Foodman	Model: FXR-4017K100	X-Ray Tube: 150W 100kV, 210W 100kV
Window of Inspection Conveyor: 400mm W x 170mm H	Stainless steel ball: φ0.3mm	Stainless steel wire: φ0.2 *2mm (L)
Ceramic ball: φ1.0mm	Glass ball: φ1.0mm	Conveyor Speed: 10-70m/min
Display: 17 inches full color touch screen	Data interface: LAN Port, USB Port	Working Temperature: -10℃-40℃(with on-board air conditioner)
Humidity: 30%-90% (Equipped with dehumidifier)	X-Ray Emission: ＜1μSv per hour	Protection: Soft Curtain（detachable）
Reaction to defectives: Sound and indicator, Belt stops, rejector optional	Power: AC220V ±10% 50/60Hz, 1.5kw Max (Adjustable)	Waterproof: IP66 for detecting tunnel, IP54 for rest of body
Body Construction: Stainless steel 304	Product Weight: Standard5KG（on Conveyor） (Adjustable)
